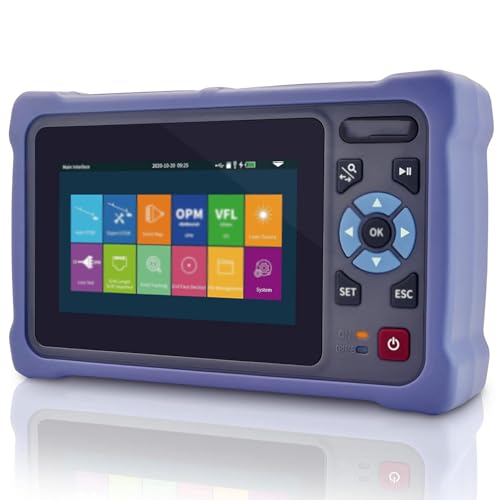

▶【11-in-1 multi-function OTDR fiber optic tester】: Automatic OTDR, expert OTDR, event map, optical power meter, visible red light, stable light source, optical loss test, RJ45 cable length/sequence/tracking and other functions. OTDR provides wavelength 1310/1550nm, dynamic range 26/24dB, and maximum test distance of up to 100 kilometers.

▶【Data Storage and Processing】: Built-in 8G memory card, can record up to 200,000 curves. Measurements include kilometers, feet, and miles, depending on your preference. Contains analytical software for further analysis or processing of data

▶【Accurate and Professional Measurement】: This is an ultra-small intelligent OTDR optical fiber tester. For automatic OTDR mode, one-click operation, no complicated settings are required, and it can be used safely even by novices. Expert OTDR mode supports simultaneous display of curves/lists/maps

▶【Large Battery Capacity】: 4000mAh lithium battery combined with intelligent energy-saving technology can ensure up to 12 hours of continuous testing and 20 hours of standby time, suitable for long-term field work. LED flashlight provides extra convenience for nighttime use

▶【Rich Configuration】: Adopts 4.3-inch 800*480 pixel touch screen and keyboard control, and provides USB Type-C port for data communication with external devices. The test curve can be saved in the memory or TF card for data simulation software to process, share and print reports.

【OPM SLS VFL RJ45】1550nm 24dB combines necessary fiber optic testing in one handheld device. OPM (Optical Power Meter: Calibrated Wavelength 850, 1300, 1310, 1490, 1550, 1625, 1650); VFL (Visual Fault Locator: 650nm wavelength); LS (Light Source:mode CW, 270Hz, 1kHz, 2kHz); RJ45: Applicable Ethernet Cable: CAT5, CAT6.

【SOR Format Storage】The optical fiber teste can save SOR format, supports viewing on PC, built in post processing software, results saved as universal SOR format files, can store over 1000 SOR files. One key measurement makes testing simple, eliminates unnecessary complexity, enables any technician to easily perform testing without having to navigate through layers of menu options.

【Dynamic Event Capturing】One key measurement makes testing simple, eliminates unnecessary complexity, enables any technician to easily perform testing without having to navigate through layers of menu options. For longer fiber segments, real time mode can display updated curves to help quickly identify problems. Once an abnormality is detected, technicians can immediately stop testing.

【Service】This OTDR optical fiber tester adopts 4.3 inch capacitive touch screen, supports zooming in and out, providing clear display, simple to operate. We are very confident in the quality of this products. If you have any suggestions for improving the product or encounter any problems during use, please reach us, we will provide you with 360 days of after sales service.

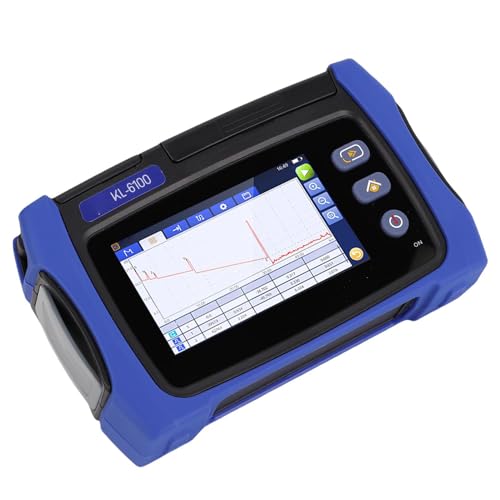

【OTDR Fiber Optic Tester】OTDR test: wavelength 1550nm, dynamic range 24dB. You can manually set the collection parameters, such as range or duration, or enable automatic mode based on fiber length and total loss, no need for tedious operation. In full automatic mode, the OTDR can test 8x3 meters of fiber jumpers continuous events, accurately test fiber events and losses in short distances.

Product Description:

Optic Tester: The 8-in-1 optic tester is built in OTDR, OPM, Visual Fault Locator, Optical Light Source, Event Map (IOLM), RJ45 Sequence Test, Loss Tester and Systerm Set. It is can quickly and accurately detect the location and type of optic cable fault points.

OTDR Tester: Test length 1310/1550nm,Test 10m~60km. 24dB/22dB (Note: Can't test spliter) Connector FC/APC (Int eable SC、ST) or connector FC/PC (Int eable SC、ST). This OTDR supports real time measuring function,can s it as SOR format file. t include event information, link length, link loss, average loss. This OTDR meets the growing demands of modern optic systems

Optical Power Meter: FC/APC (Int eable SC、ST) or FC/PC (Int eable SC、ST) and interfaces are universal. Support the test of different lengths of the red light source (650nm±20nm) and optical power/light source (850nm, 1300nm, 1310nm, 1490nm, 1550nm, 1625nm); Optical fault detection, optical breakpoint location, optical transmitter power measurement (dBm and W), optical line loss test

Event Map & Light Source: The event map function is one-click automatic test, which displays the length of the optical link under test, event point type, breakpoint location and information in a graphical form. The stable light source is used for communications, CATV, and LAN optical cable parameter testing.

4.3in Color Touch Screen: This OTDR optical fiber tester adopts 4.3 inch capacitive touch screen, supports zooming in and out, providing clear display, simple to operate.

Simple Operation: One key measurement makes testing simple, eliminates unnecessary complexity, enables any technician to easily perform testing without having to navigate through layers of menu options.

Manual Automatic Mode: You can manually set the collection parameters, such as range or duration, or enable automatic mode based on fiber length and total loss, no need for tedious operation.

SOR Format Storage: The optical fiber teste can save SOR format, supports viewing on PC, built in post processing software, results saved as universal SOR format files, can store over 1000 SOR files.

Accurate Testing: In full automatic mode, the OTDR can test 8x3 meters of fiber jumpers continuous events, accurately test fiber events and losses in short distances.

💝Product Description:

💝Optic Tester: The 8-in-1 optic tester is built in OTDR, OPM, Visual Fault Locator, Optical Light Source, Event Map (IOLM), RJ45 Sequence Test, Loss Tester and Systerm Set. It is can quickly and accurately detect the location and type of optic cable fault points.

💝OTDR Tester: Test length 1310/1550nm,Test 10m~60km. 24dB/22dB (Note: Can't test spliter) Connector FC/APC (Int eable SC、ST) or connector FC/PC (Int eable SC、ST). This OTDR supports real time measuring function,can s it as SOR format file. t include event information, link length, link loss, average loss. This OTDR meets the growing demands of modern optic systems

💝Optical Power Meter: FC/APC (Int eable SC、ST) or FC/PC (Int eable SC、ST) and interfaces are universal. Support the test of different lengths of the red light source (650nm±20nm) and optical power/light source (850nm, 1300nm, 1310nm, 1490nm, 1550nm, 1625nm); Optical fault detection, optical breakpoint location, optical transmitter power measurement (dBm and W), optical line loss test

💝Event Map & Light Source: The event map function is one-click automatic test, which displays the length of the optical link under test, event point type, breakpoint location and information in a graphical form. The stable light source is used for communications, CATV, and LAN optical cable parameter testing.

SAVE SOR FILES: Supports saving in SOR format for PC viewing with built in post processing software, saving as universal SOR format files, capable of storing over 1000 SOR files.

WIDE APPLICATION: Widely used in fiber optic communication, fiber optic sensing, fiber optic cables, fiber optic manufacturing, etc. Helps engineers quickly identify fiber breakpoints, measure fiber cable length, and improve fiber network maintenance efficiency.

4.3 INCH TOUCH SCREEN: Upgraded 4.3 inch color LCD touchscreen with high definition data display, making it easier to use and greatly improving work efficiency.

STABLE SUPPORT STAND: Convenient for desktop operation, reducing measurement errors caused by device shaking during fiber measurements, improving measurement accuracy.

MULTIFUNCTIONAL TOOL: The fiber optic tool used to evaluate FTTx and access network construction and maintenance, identifying fiber breakpoints, measuring fiber cable length, and calculating relative optical power loss.

✔️Product Description:

✔️Optic Tester: The 8-in-1 optic tester is built in OTDR, OPM, Visual Fault Locator, Optical Light Source, Event Map (IOLM), RJ45 Sequence Test, Loss Tester and Systerm Set. It is can quickly and accurately detect the location and type of optic cable fault points.

✔️OTDR Tester: Test length 1310/1550nm,Test 10m~60km. 24dB/22dB (Note: Can't test spliter) Connector FC/APC (Int eable SC、ST) or connector FC/PC (Int eable SC、ST). This OTDR supports real time measuring function,can s it as SOR format file. t include event information, link length, link loss, average loss. This OTDR meets the growing demands of modern optic systems

✔️Optical Power Meter: FC/APC (Int eable SC、ST) or FC/PC (Int eable SC、ST) and interfaces are universal. Support the test of different lengths of the red light source (650nm±20nm) and optical power/light source (850nm, 1300nm, 1310nm, 1490nm, 1550nm, 1625nm); Optical fault detection, optical breakpoint location, optical transmitter power measurement (dBm and W), optical line loss test

✔️Event Map & Light Source: The event map function is one-click automatic test, which displays the length of the optical link under test, event point type, breakpoint location and information in a graphical form. The stable light source is used for communications, CATV, and LAN optical cable parameter testing.

Multifunction Tool: This OTDR multifunctional tester is designed for evaluating the construction and maintenance of FTTx and access networks. It efficiently identifies fiber optic breaks, measures fiber optic cable lengths, and calculates relative optical power loss, all in a single device.

Advanced Parameters: With testing wavelengths of 1310nm and a testing range of 500m to 64km, this OTDR supports dynamic ranges of 24dB 22dB. It features interchangeable connectors (FC, SC, ST) and includes a line locator, making it incredibly user friendly and versatile.

Vibrant Touchscreen: The upgraded 3.5 inch color LCD touchscreen provides HD data display, allowing for intuitive interaction and a significant boost in work efficiency. Its user friendly interface makes data access straightforward, enhancing the overall testing experience.

Built in Smart Features: This intelligent fiber measurement instrument incorporates diverse functionalities such as fiber communicating measurement, cable sequencing, OPM, stable light source, VFL, and RJ11 line tracing, making it a comprehensive tool for any technician. It even supports live traffic fiber testing.

Extensive Storage Capacity: Equipped with internal storage for over 700 data entries and a Type C data interface, this device also supports external storage via a memory card(not included). You can easily store and retrieve data for future reference, ensuring that your testing data is always at hand.
